Question: A 2.40-kg ball is attached

A 2.40-kg ball is attached to an unknown spring and allowed to oscillate. Figure E14.7 shows a graph of the ball’s position x as a function of time t. What are the oscillation’s (a) period, (b) frequency, (c) angular frequency, and (d) amplitude? (e) What is the force constant of the spring? Figure E14.7:
A 2.40-kg ball is attached to an unknown spring and allowed to oscillate. Figure E14.7 shows a graph of the ball’s position x as a function of time t. What are the oscillation’s
(a) period,
(b) frequency,
(c) angular frequency, and
(d) amplitude?
(e) What is the force constant of the spring?

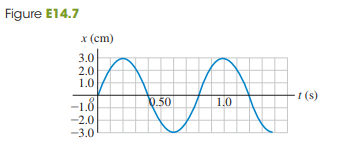

Figure E14.7:





Transcribed Image Text:

Figure E14.7 х (ст) 3.0 2.0 1.0 1 (s) -1.0 0.50 1.0 -2.0 -3.0
