Question: A wind turbine with two or four

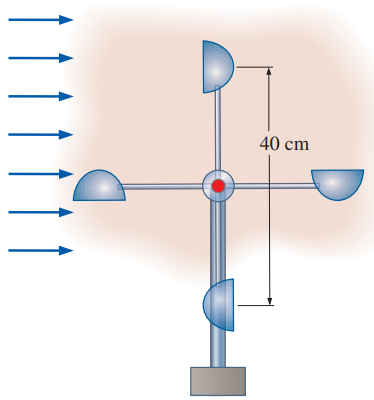

A wind turbine with two or four hollow hemispherical cups connected to a pivot is commonly used to measure wind speed. Consider a wind turbine with four 8-cm-diameter cups with a center-to center distance of 40 cm, as shown in Fig. P15–30. The pivot is stuck as a result of some malfunction, and the cups stop rotating. For a wind speed of 15 m/s and air density of 1.25 kg/m3, determine the maximum torque this turbine applies on the pivot.
A wind turbine with two or four hollow hemispherical cups connected to a pivot is commonly used to measure wind speed. Consider a wind turbine with four 8-cm-diameter cups with a center-to center distance of 40 cm, as shown in Fig. P15–30. The pivot is stuck as a result of some malfunction, and the cups stop rotating. For a wind speed of 15 m/s and air density of 1.25 kg/m3, determine the maximum torque this turbine applies on the pivot.
