Question: Two concentric spheres with diameters of 5

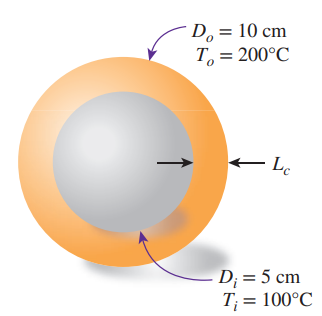

Two concentric spheres with diameters of 5 cm and 10 cm have their surface temperatures maintained at 100°C and 200°C, respectively. The enclosure between the two concentric spherical surfaces is filled with nitrogen gas at 1 atm. Determine the rate of heat transfer through the enclosure.
