Question: Repeat Prob. 13–24 for the case

Repeat Prob. 13–24 for the case of θ = 125°. Data from Prob. 13-24: A reducing elbow in a horizontal pipe is used to deflect water flow by an angle θ = 45° from the flow direction while accelerating it. The elbow discharges water into the atmosphere. The cross sectional area of the elbow is 150 cm2 at the inlet and 25 cm2 at the exit. The elevation difference between the centers of the exit and the inlet is 40 cm. The mass of the elbow and the water in it is 50 kg. Determine the anchoring force needed to hold the elbow in place. Take the momentum flux correction factor to be 1.03 at both the inlet and outlet.
Repeat Prob. 13–24 for the case of θ = 125°.

Data from Prob. 13-24:

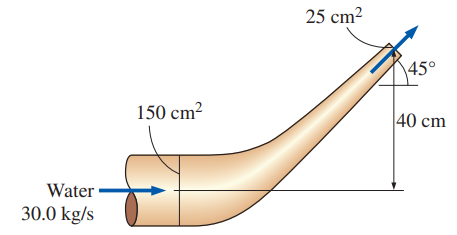

A reducing elbow in a horizontal pipe is used to deflect water flow by an angle θ = 45° from the flow direction while accelerating it. The elbow discharges water into the atmosphere. The cross sectional area of the elbow is 150 cm2 at the inlet and 25 cm2 at the exit. The elevation difference between the centers of the exit and the inlet is 40 cm. The mass of the elbow and the water in it is 50 kg. Determine the anchoring force needed to hold the elbow in place. Take the momentum flux correction factor to be 1.03 at both the inlet and outlet.
