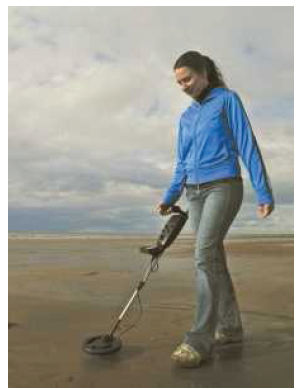

Two electrical oscillators are used in a heterodyne metal detector to detect buried metal objects (see Fig. P21.41). The detector uses two identical electrical oscillators in the form of LC circuits having resonant frequencies of 725 kHz. When the signals from the two oscillating circuits are combined, the beat frequency is zero because each has the same resonant frequency. However, when the coil of one circuit encounters a buried metal object, the inductance of this circuit increases by 1.000%, while that of the second is unchanged. Determine the beat frequency that would be detected in this situation.
Figure P21.41:
