Question: Two infinitely long parallel plates of width

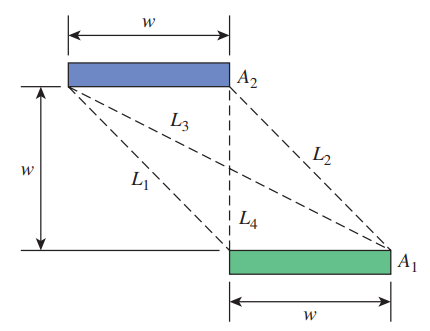

Two infinitely long parallel plates of width w are located at w distance apart, as shown in Fig. P21-67. Using the Hottel’s crossed-strings method, determine the view factor F12.
