Question: Saturated water vapor at 100°C condenses

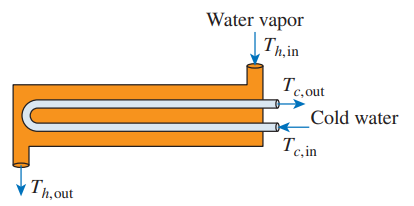

Saturated water vapor at 100°C condenses in the shell side of a one-shell and two-tube heat exchanger with a surface area of 0.5 m2 and an overall heat transfer coefficient of 2000 W/m2⋅K. If cold water (cpc = 4179 J/kg⋅K) flowing at 0.5 kg/s enters the tube side at 15°C, determine the outlet temperature of the cold water and the heat transfer rate for the heat exchanger.
Saturated water vapor at 100°C condenses in the shell side of a one-shell and two-tube heat exchanger with a surface area of 0.5 m2 and an overall heat transfer coefficient of 2000 W/m2⋅K. If cold water (cpc = 4179 J/kg⋅K) flowing at 0.5 kg/s enters the tube side at 15°C, determine the outlet temperature of the cold water and the heat transfer rate for the heat exchanger.
