Question: A rubber sheet in biaxial stress is

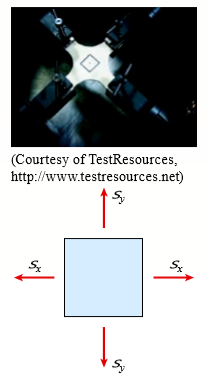

A rubber sheet in biaxial stress is subjected to tensile stresses σx = 270 Pa and σy = 144 Pa. The corresponding strains in the sheet are εx = 0.0002 and εy = 0.000015. Determine Poisson’s ratio and the modulus elasticity of the material.
A rubber sheet in biaxial stress is subjected to tensile stresses σx = 270 Pa and σy = 144 Pa. The corresponding strains in the sheet are εx = 0.0002 and εy = 0.000015. Determine Poisson’s ratio and the modulus elasticity of the material.





Transcribed Image Text:

(Courtesy of TestResources, http://www.testresources.net)
