Question: A simple beam AB is loaded by

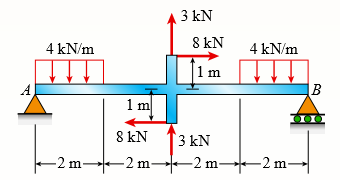

A simple beam AB is loaded by two segments of uniform load and two horizontal and vertical forces acting at the ends of a vertical arm (see figure). Draw the shear-force and bending-moment diagrams for this beam.
A simple beam AB is loaded by two segments of uniform load and two horizontal and vertical forces acting at the ends of a vertical arm (see figure).
Draw the shear-force and bending-moment diagrams for this beam.





Transcribed Image Text:

3 kN 8 kN 4 kN/m 4 kN/m 1 m A B 1m 8 kN 3 kN -2 m- -2 m -2 m– -2 m
