Solve the preceding problem if the axial stress in the middle region is 24,000 psi, the length is 30 in., and the modulus of elasticity is 30 × 106 psi. In part (c), assume that δmax = 0.02 in.
Data from Problem 8:

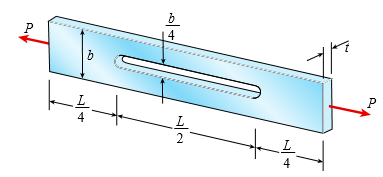

A rectangular bar of length L has a slot in the middle half of its length (see figure). The bar has width b, thickness t, and modulus of elasticity E. The slot has width b/4.
(a) Obtain a formula for the elongation δ of the bar due to the axial loads P.
(b) Calculate the elongation of the bar if the material is high-strength steel, the axial stress in the middle region is 160 MPa, the length is 750 mm, and the modulus of elasticity is 210 GPa.
(c) If the total elongation of the bar is limited to δmax = 0.475 mm, what is the maximum length of the slotted region? Assume that the axial stress in the middle region remains at 160 MPa.
4 P L 4 4 P L 4
